15" CompQ 2 Ohm
Price: $699.95 - Not available online
The KICKER CompQ™ Subwoofer delivers on all of the power, capacity and performance of its square counterpart L7™, only utilizing a round basket and cone.

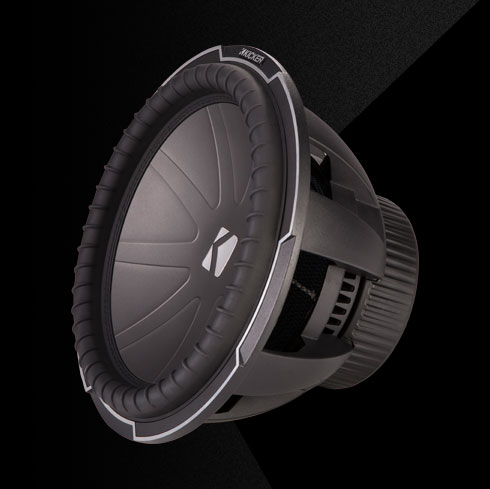

The 15" CompQ 2 Ohm

The CompQ 15” Subwoofer is the pinnacle of our round speaker line, with nearly identical construction and performance as our L7 square subs.


Built for high power handling and extremely accurate bass reproduction, this KICKER sub features Ribbed Santoprene® surrounds and a BlueLace™ large-diameter progressive roll spider for extreme flexibility at any volume level.


The CompQ 15” works best with a sealed or ported enclosure with 1,100 watts of recommended power. See below for more details.

CompQ™ Specifications
Rated Impedance [Ω]
2
Fs [Hz
30.6
Sensitivity [1W, 1m]
88.6
Qts
0.472
Qms
9.672
Qes
0.496
Re [Ω]
6.03
Vas [ft³, L]
2.5, 70.747
Continuous Power Handling [Watts RMS]
1100
Outer Frame Dimension [in, cm]
15-3/8, 39.1
Mounting Depth [in, cm]
8-15/16, 22.6
Mounting Cutout [in, cm]
13-7/8, 35.2
Frequency Response [Hz
18 – 100
Sealed Enclosure Specs
Minimum Sealed Volume ft3 (L)
1.5 (42.5)
Minimum Sealed Power Handling
1100 RMS
Maximum Sealed Volume ft3 (L)
6 (169.9)
Maximum Sealed Power Handling
1100 RMS
Panel Dimensions for Minimum Sealed Enclosures using 3/4” (1.9cm) thick MDF
Box Volume [ft³, L]
1.5 (42.5)
Panel A [in, cm]
16.5x16.5, 41.9x41.9
Panel B [in, cm]
16.5x11.5, 41.9x29.2
Panel C [in, cm]
15x11.5, 38.1x29.2
Vented Minimum
Box Volume, ft³ (L) + port displacement
3.0, 85
Port Opening Size, in x in (cm x cm)
2.5x16.25, 6.4x41
Port Length, in (cm)
19.5, 50
Power Handling, RMS
1100
Vented Maximum
Box Volume, ft³ (L)
6.0, 170
Port Opening, in x in (cm x cm)
3.5x16.25, 8.9x41
Port Length, in (cm)
13.75, 35
Power Handling, Watts RMS
1100

Due to continual developement, product, and specifications are subject to change without notice. Stillwater Designs and it's agents are not responsible for typographical errors.
