IQI Intelligent Interface
The optional IQI Bluetooth Interface is your wireless entertainment, communications and tuning hub rolled into one.

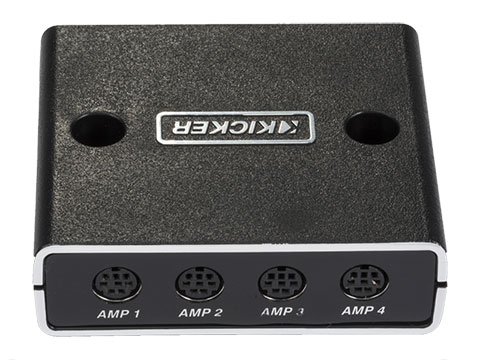

four IQ amplifiers connected to the IQI

Play With It

Play Bluetooth audio by streaming your music directly through the IQI.



Talk With It

Connect the included microphone for easy hands-free communication and voice commands.*
*compatible phones only



Control With It

Stream music and control TWEEQ™ (see below) for up to four IQ amplifiers.

TWEEQ™ IT

All IQ amplifiers come with the revolutionary TWEEQ tuning software. Available as a free app for PC, iOS and Android, this tuning system allows you the freedom to dial in your perfect sound – without buying or installing a separate processor.

Equipped with a simple walk-through configuration process, TWEEQ includes every tool you need to craft a truly excellent sonic environment. A graphic speaker selection menu, +/- 12dB equalizer with 31-bands, adjustable 24dB crossover and time alignment is all included for every channel of the amp. Access the Advanced settings for time delay controls, phase options, a full limiter/compressor, and input mixer to make your sound stage as unique as you are.

Want to TWEEQ your system wirelessly? Simply add the IQI Intelligent Interface and control as many as four IQ amplifiers with Bluetooth®! TWEEQ™

Specifications
Tweeq Application
Apple and Android
Real Bluetooth Music Streaming Performance
116ft – Line of sight, no obstructions
23ft – One body obstruction
14ft – Two bodies obstructing
Built in Mic
yes
Outputs
SPDIF
Max Current Draw
300 milliamps
Bluetooth Spec
BT 2.1EDR
Supported BT Profiles
H2DP
AVRCP
HFP
IAP
SPP
Cables
4 1m S-din cables
Max Amplifiers
4 IQ Amps
Dimensions (mm)
H x W x D | 24 x 82 x 78
Dimensions (in)
H x W x D | 15/16 x 3 ¼ x 3
Support

Software


Brick your IQI™? Here’s the fix.

If your IQI is not working because you have tried to update your IQ-Series amplifier through the IQI, this update will get you up and running.
Just download the IQI Update Tool to your PC and follow the directions to restore your IQI to its original condition. AND REMEMBER – if you want to update the firmware in your IQ amps, connect your PC directly to the amplifier, not the IQI. Download (IQIFlashUpdater.exe)

Manuals


2015 IQI Quick Start Guide | Multilingual | Download
