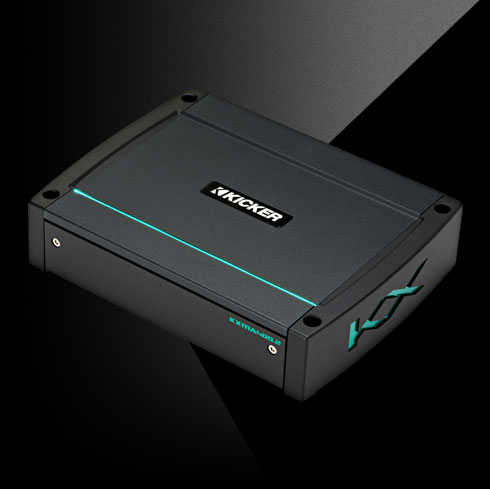

KXMA400.2 Stereo Amplifier
KXM Amplifiers are built for fun, no matter where you go. Power, speaker and input connections are gasket-sealed, as is the control cover hiding the settings, creating a water-resistant barrier to key components.

KXMA400.2 Amplifier

KickEQ+™ delivers as much as an 18dB of extra bump with a simple turn of the knob. A powerful 24dB crossover is also included, letting you quickly tune your system to perfection. A full range RCA output allows you to easily add another amplifier without running new signal cable to the radio.

Features:

  • Class D Power Plant
  • Gain Control With "Optimal Input" Indicator
  • FIT2™ (Fail-Safe Integration Technology) Circuitry
  • Variable 24dB Crossover
  • DSP-Controlled Preamp
  • KickEQ+™ 18dB Variable Bass Boost
  • ABYC/NMMA Compliant Power Terminals
  • Conformal-Coated Circuit Boards
  • Easy Access to Settings behind Gasket-Sealed Cover Panel
  • Black Anodized Aluminum Chassis
  • Top-Mounted Teal LED Light Pipe
  • Stainless Steel Mounting Hardware Included

Want setup help? Go to KICKER U for a free woofer & amplifier configuration app!

This KXM amplifier delivers as much as 200 watts per channel (stereo) or 400 watts into one channel (mono). See below for more details.

Specifications
RMS Power [Watts]
@ 14.4V, 4Ω stereo, ≤ 1% THD+N : 100 x 2
@ 14.4V, 2Ω stereo, ≤ 1% THD+N : 200 x 2
@ 14.4V, 4Ω bridged mono, ≤ 1% THD+N: 400 x 1
Length [in, cm]
9-916 , 24.4
Height [in, cm]
2-⅛, 5.5
Width [in, cm]
8-516 , 21
Frequency Response ± 1dB
10Hz–20kHz
Signal-to-Noise Ratio [dB]
95
Input Sensitivity
250mV-10V
Selectable Electronic Crossover
Off
Variable HP, 10-500Hz
Variable LP, 40-500Hz; 400Hz–5,000Hz with 10X Switch (BP capable)
Slope: 24dB/octave
KickEQ+™ Bass Boost
0-18dB @ 40Hz
CEA Power
100 x 2 @ 4 ohms, 14.4VDC, 1% THD, CEA-2006B (Watts)
CEA Signal-to-Noise Ratio
-75dB CEA-2006B (ref: 1W, A-weighted)
