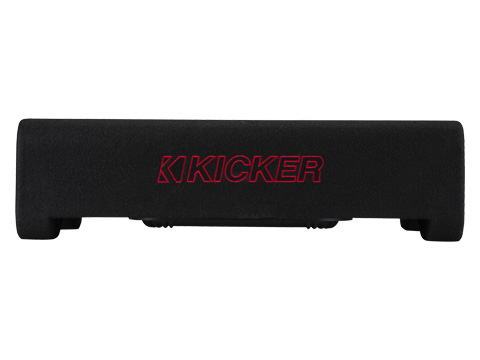

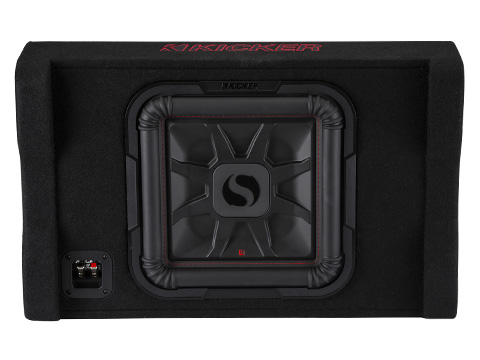

Down-Firing L7T Enclosure front

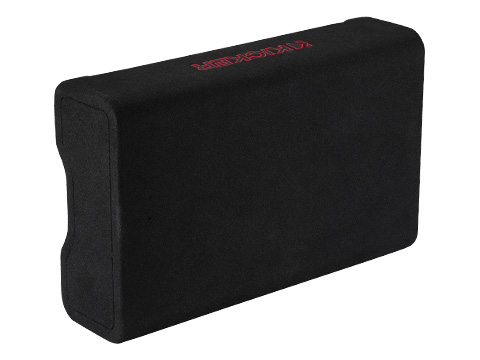

Down-Firing L7T Enclosure top

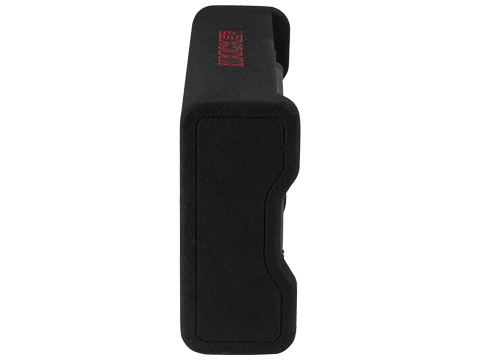

Down-Firing L7T Enclosure front
Down-Firing L7T Enclosure bottom
enlarge front
enlarge top
enlarge front
enlarge bottom
Down-Firing 12" L7T 2-Ohm Enclosure
L7T Down-Firing Loaded Enclosures are ultra-thin, square subwoofers loaded in a custom-tuned box, made to pound out the low notes without taking up the cargo space you need.

Model: 49L7TDF122

Deep bass in a small space

  • Fitment under many truck seats
  • Down-firing design and tough enclosure resists stacking weight
  • Square L7T sub design is louder than round subs
  • Forced-Air Cooling for high power handling and reliability
Specifications
TYPE:
downfire
WOOFER SIZE (in, cm):
12, 30
IMPEDANCE (Ohms):
2
Recommended Amplifier Power (watts RMS)
600
SENSITIVITY (dB 1w/1m):
86.1
BOX DIMENSIONS
DIMENSION A (in, cm):
15, 38.0
DIMENSION B (in, cm):
23-7/8, 60.5
DIMENSION C (in, cm):
6-1/2, 16.7
Warranty
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. - Complete warranty information here.
