PX200.1 Amplifier
PX Amplifiers are specially designed to deliver tremendous power in a tiny, weatherproof footprint – without taxing your charging system.

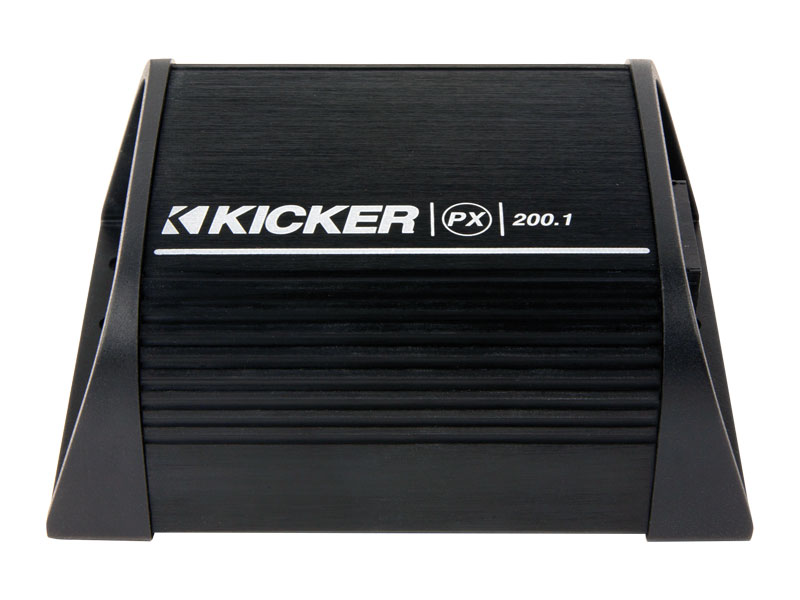

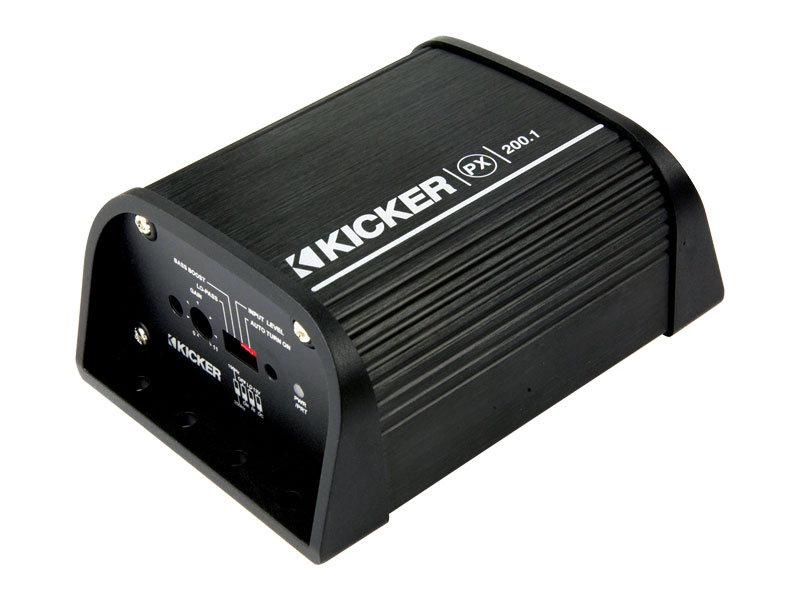

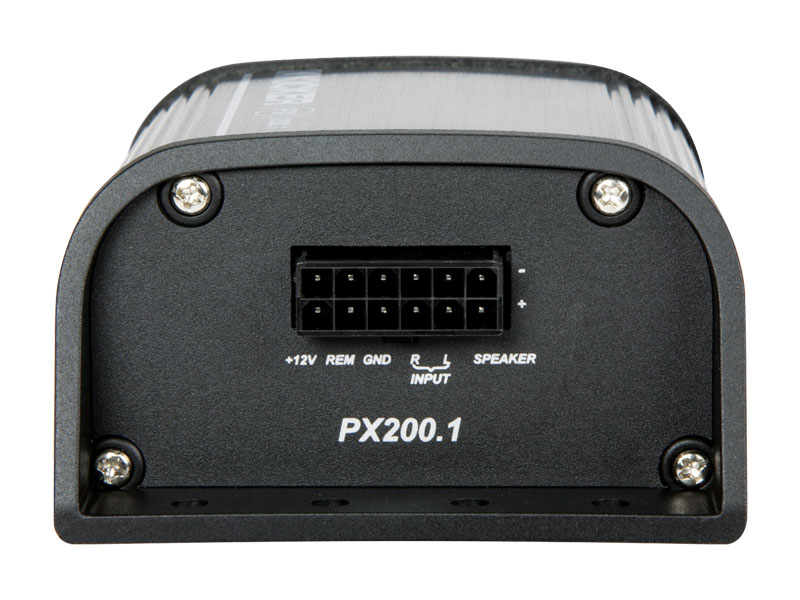

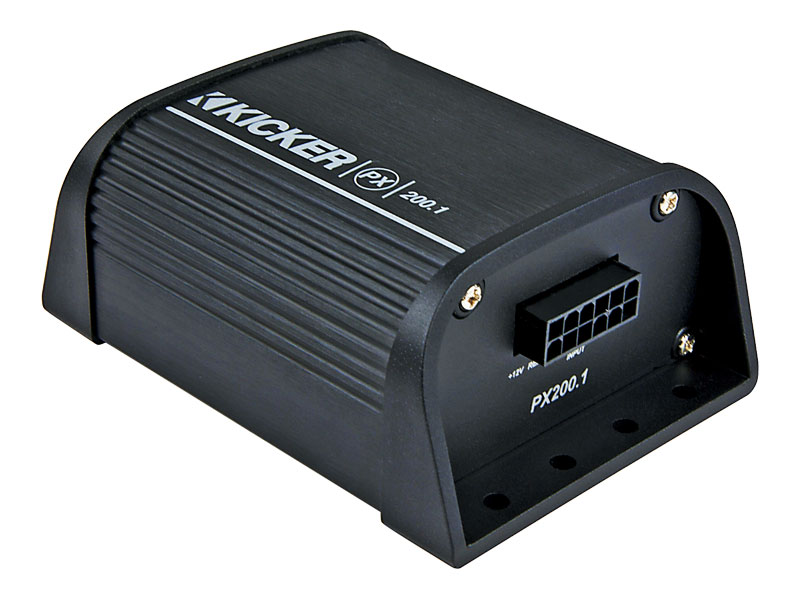

PX200.1 Amplifier

This tiny amp puts the power in powersports. Deliver as much as 200 watts into your subwoofer with an amplifier under five inches long. Perfect for motorcycles, side-by-sides, ATV’s and even classic cars, this weatherproof amp delivers huge power, on or off the road. A selectable crossover with 24dB subsonic filter and bass boost are included to customize your sound. A wide range of input levels make this amp easy to hook up with a factory or aftermarket radio. This PX amplifier delivers as much as 200 watts into one channel. See below for more details.

PX200.1 Specifications
RMS Power [Watts]
@1Ω Mono: 100x1
@0.5Ω Mono: 200x1
Length, in [cm]
4-11/16” [11.9]
Height, in [cm]
2” [5]
Width, in [cm]
3-1/2” [8.9]
Frequency Response +/- 1db
40Hz-250Hz
Signal-to-Noise Ratio [dB]
>90dB, A-weighted, re:rated power
Input Sensitivity
Low Level: 125mV-5V
High Level: 250mV–10V
Electronic Crossover
Selectable 100Hz or 250Hz Low Pass 24dB/Octave
Bass Boost
Selectable 0 or +6dB @60Hz
Subsonic Filter
40Hz, 24dB/Octave
