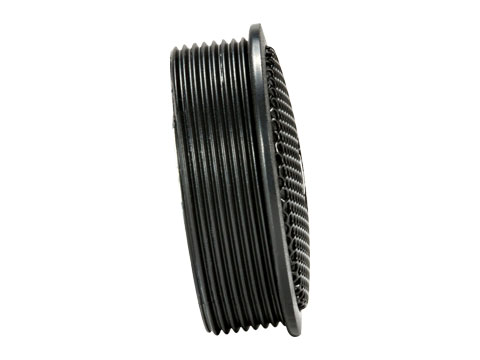

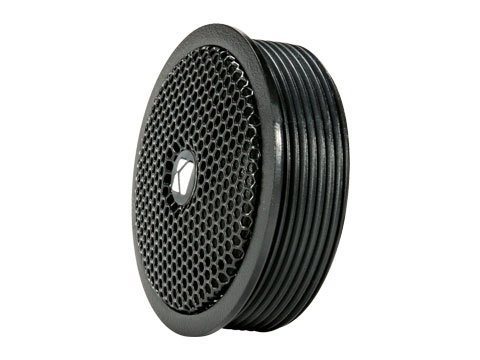

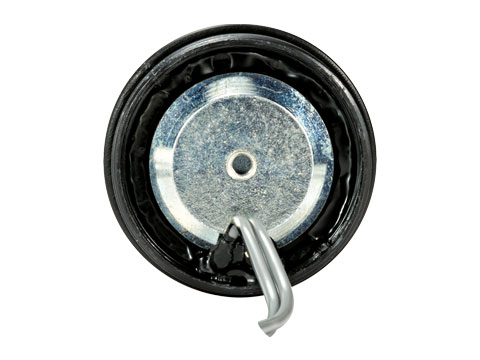

KS Series 1" Tweeter
KICKER’s® elite KS tweeter upgrade has extended frequency range and high power handling make it an excellent addition when you crave more volume and realism.

KS Series 1" Tweeter

The KS One-Inch Tweeter is a silk dome, complete with a trio of mounting options and an in-line 12dB crossover.

Features:

  • Silk Dome Tweeters For A Smooth Sound
  • Three Tweeter Mounting Options (Hardware Included)
  • Extended Frequency Response
  • Lightweight Neodymium Magnets
  • In-Line12dB Crossover Included
  • Poly-Switch Protection
  • Grilles Included

The tweeter works best with 75 watts of recommended power. See below for more details.

Mounting Options

When it comes to mounting your tweeters, the KS Series 1" Tweeter gives you plenty to choose from!

Specifications
Tweeter [in,mm]
1, 25
Tweeter Dome Material
Silk
Rated Impedance [Ω]
4
Peak Power (watts, per ANSI/CTA-2031-A)
150
Recommended Amplifier Power (watts RMS)
75
Sensitivity [1W, 1m]
94
Frequency Response [Hz]
3500-21k
Flush Mount Tweeter Depth [in, mm]
916, 14
Flush Mount Tweeter Hole Diameter [in, mm]
1-¾, 45
High Pass [dB], at Frequency [Hz]
12, 3500
Support

Manuals


2017 KS Tweeters | Multilingual | Download
