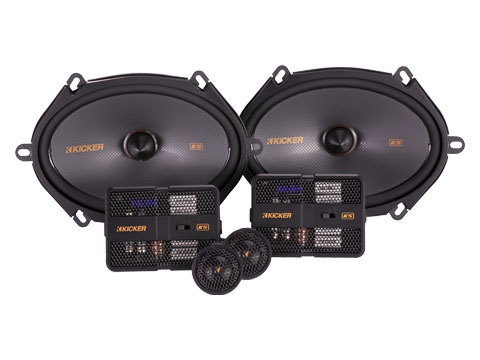

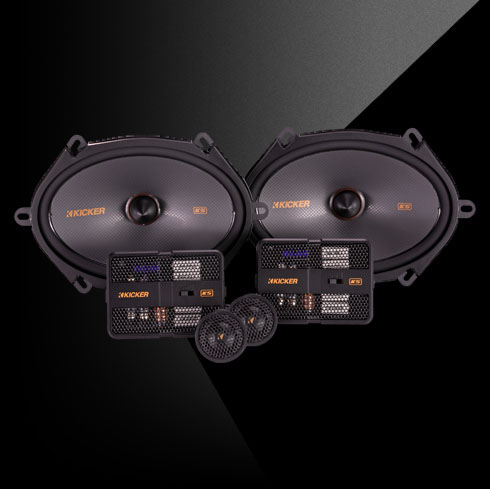

KS speakers with crossovers and tweeters

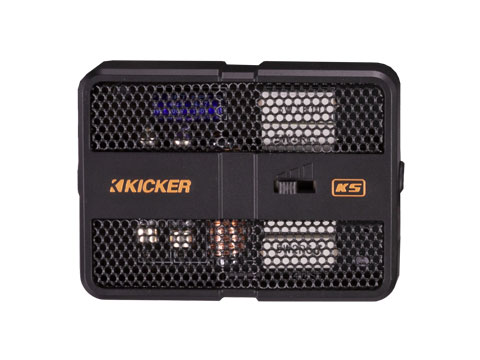

KS crossovers

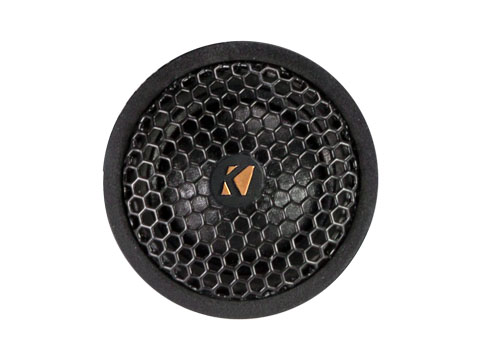

KS tweeters

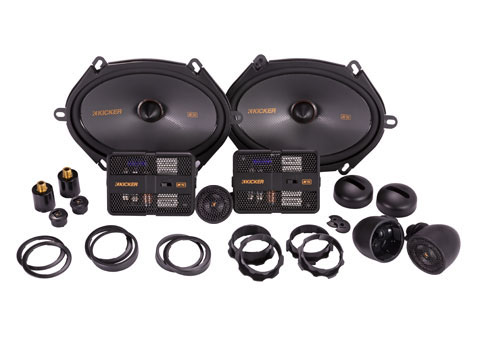

KS with accessories
enlarge KS speakers
enlarge crossovers
enlarge tweeters
enlarge accessories
KSS680
6x8" Component Speaker System
KICKER’s KS-Series Component Systems are stunningly accurate upgrades with extraordinary mounting flexibility.

Center Stage

KICKER KS-Series Speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. Internally dampened polypropylene cones and durable rubber surrounds assist the woofers in creating precise midrange and bass, while high-quality silk-dome tweeters deliver natural, detailed highs.

Experience your music as a component system with separate tweeters, or as a high-end coaxial system. The woofers’ removable bullet-style phase plug is replaced with a special adapter, allowing the 25 millimeter, silk-dome tweeters to rotate and tilt. You get more system design options and superior off-axis performance. They work best with 15 to 125 watts of recommended power. See below for more details.

  • High power handling
  • Silk-dome tweeters for a smooth sound
  • Polypropylene woofer and tough rubber surrounds
  • Thin-mount design easily fits behind factory grilles
  • Four tweeter mounting options
  • Articulating tweeter pod included
  • Smaller crossover makes mounting even easier
  • Grilles included
Specifications
Woofer [in, mm]
6x8, 160x200
Tweeter [in,mm]
1, 25
Dome Material
Silk
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-125
Sensitivity [1W, 1m]
91
Frequency Response [Hz]
35-21k
Woofer Mounting Hole Diameter [in, mm]
5x7-18, 127x182
Woofer Bottom Mount Depth [in, mm]
2-¼, 58
Flush Mount Tweeter Hole Diameter [in,mm]
1-¾, 45
Flush Mount Tweeter Depth [in,mm]
1116 , 17
High Pass [dB], at Frequency [Hz]
12, 4,000
Low Pass [dB], at Frequency [Hz]
none
High Frequency Output Attenuation [dB]
0, 4.5, 9
Warranty
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase. - Complete warranty information here.
Support

Manuals


2020 KS Series | Download

Installation Guide | Download

Do you have a different model? Click Here
