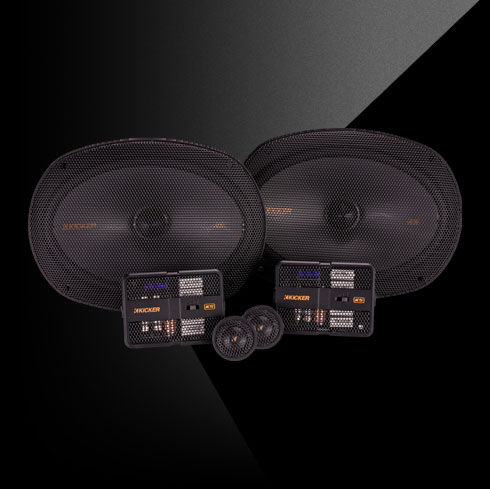

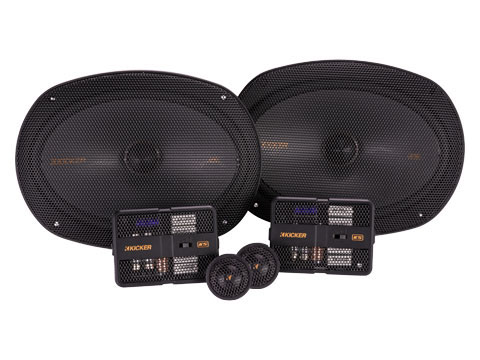

KSS690
6x9" Component Speaker System
KICKER’s KS-Series Component Systems are stunningly accurate upgrades with extraordinary mounting flexibility.

Center Stage

KICKER KS-Series Speakers let you play at concert-like volume, yet maintain the smoothness and subtlety to please even the most selective ear. Internally dampened polypropylene cones and durable rubber surrounds assist the woofers in creating precise midrange and bass, while high-quality silk-dome tweeters deliver natural, detailed highs.

Experience your music as a component system with separate tweeters, or as a high-end coaxial system. The woofers’ removable bullet-style phase plug is replaced with a special adapter, allowing the 25 millimeter, silk-dome tweeters to rotate and tilt. You get more system design options and superior off-axis performance. They work best with 15 to 125 watts of recommended power. See below for more details.

  • High power handling

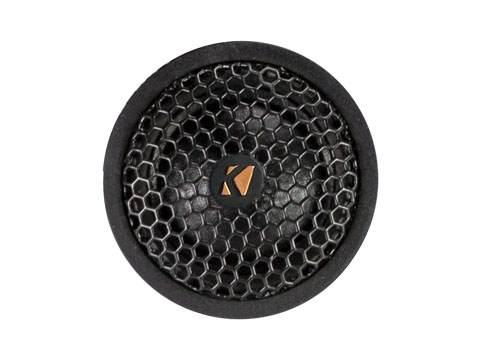

  • Silk-dome tweeters for a smooth sound
  • Polypropylene woofer and tough rubber surrounds
  • Thin-mount design easily fits behind factory grilles

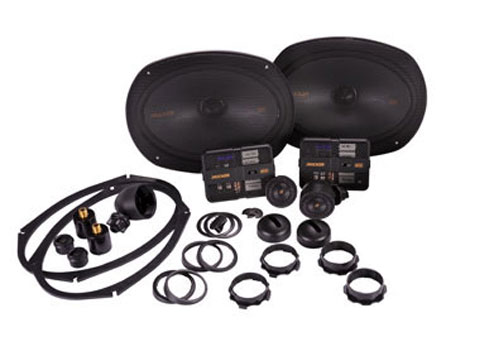

  • Four tweeter mounting options
  • Articulating tweeter pod included

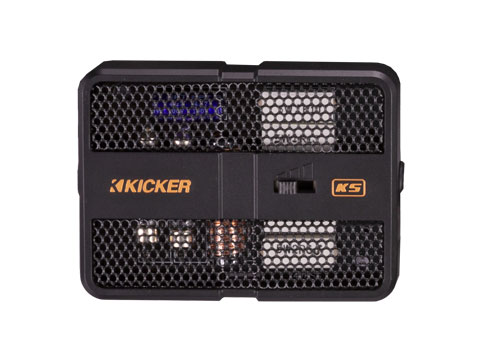

  • Smaller crossover makes mounting even easier
  • Grilles included
Specifications
Woofer [in, mm]
6x9, 160x230
Tweeter [in,mm]
1, 25
Dome Material
Silk
Rated Impedance [Ω]
4
Recommended Amplifier Power [Watts RMS]
15-150
Sensitivity [1W, 1m]
92
Frequency Response [Hz]
35-21k
Woofer Mounting Hole Diameter [in, mm]
5-58x8-716, 143x215
Woofer Bottom Mount Depth [in, mm]
2-1516, 75
Flush Mount Tweeter Hole Diameter [in,mm]
1-¾, 45
Flush Mount Tweeter Depth [in,mm]
1116 , 17
High Pass [dB], at Frequency [Hz]
12, 4,000
Low Pass [dB], at Frequency [Hz]
none
High Frequency Output Attenuation [dB]
0, 4.5, 9
