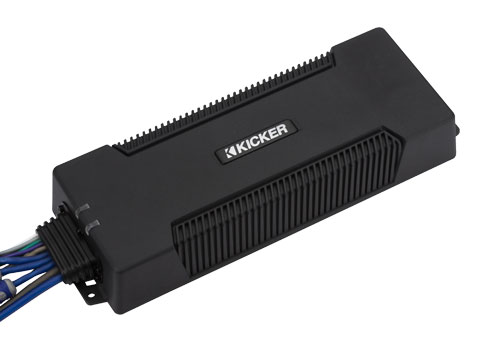

PXA1000.5 Amplifier
Completely re-engineered, the PXA1000.5 is a single-amp solution to an entire system! It supplies big full-range power, in a compact, waterproof design for the trickiest installs.

Class-Leading Power

  • Waterproof amplifier design with IP66 and IP67 certifications
  • Ideal for UTVs, off-road vehicles, hot rods or space-challenged vehicles
  • High-efficiency Class-D technology
  • Huge full-range power from a small footprint – rated at 1400 watts Dynamic Power!**
  • Includes subwoofer channel stable at one-Ohm
  • Dual turn-on modes (choice of DC offset or 12v trigger)
  • Includes inline power and ground couplers that need no soldering or crimping
  • Stainless-steel mounting hardware included

If you have two mono amps or powered subwoofers, check out the DBRC Remote for controlling both from the same knob.

Specifications
Power (watts/ch), 2 Ohm Stereo:
150 x 4
Power (watts/ch), 4 Ohm Stereo:
100 x 4
Power (watts/ch), 1 Ohm Mono:
600 x 1 (sub ch)
Power (watts/ch), 2 Ohm Mono:
500 x 1 (sub ch)
Power (watts/ch), 4 Ohm Bridged Mono / 4 Ohm Mono (Sub):
300 x 2 (amp 1 and 2);300 x 1 (sub ch)
**Dynamic Power (watts):
1400
Frequency Response (Hz, +0/-3dB):
(FR) 10-20k; (sub) 25-200
Crossovers:
24dB/octave hi-pass 80/120Hz (amp1 and amp2); lo-pass 60/80/100/120Hz (sub only)
Subsonic – 25Hz, 24dB/octave (sub only)
Bass Boost:
selectable 0/+6dB, centered at 40Hz (sub channel only)
Dimensions (in, mm):
W: 4-1/2, 114.7
H: 1-15/16, 50
L: 12-7/8, 327.5
CXARC Remote capable (sold separately):
Yes (sub channel only)
What's in the Box:
Waterproof IP66/IP67 power sports amplifier
2 DC power couplers
Stainless-steel mounting hardware
Customer information Card
Warranty
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase. - Complete warranty information here.

*RMS Power test @ 14.4v @ _ 1% THD+N, Audio Precision analyzer, see www.kicker.com/amp-power-testing for details.

**Dynamic Power test @ 14.4v @ _ 10% THD+N, Audio Precision APx500 analyzer, see www.kicker.com/amp-power-testing for details.
