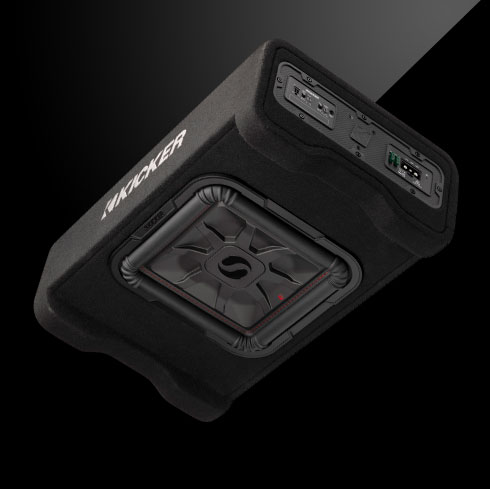

PL7TDF Powered Down-Firing 12" Enclosure
Everything you need in one package, and then some! Award-winning Solo-Baric L7 Subwoofers in a tough but convenient, down-firing enclosure, and big power from an internal amplifier providing big bass to your vehicle. Outstanding!
model: 53PL7TDF12
model: 53PL7TDF12
Powerful and Down-Firing - It Means Business!
- Compact, factory-tuned enclosure for tight locations to fit many trucks and SUVs
- Two models available – 12-inch sub with 600-watt amp, or a 10-inch sub with 500-watt amp
- Amp is built-in and power-matched for the hardest-hitting bass
- Easily integrates with factory system
- Down-firing for ultimate subwoofer protection
- Thick, tough internal bracing to resist stacking weight
- Solo-Baric L7 square technology for moving more air and creating more bass
- Built-in Start/Stop compatibility
- Remote bass control included
If you have two mono amps or powered subwoofers, check out the DBRC Remote for controlling both from the same knob.
Specifications
| Product Dimension Sheet |
| 53PL7TDF12 Dimensions |
| TYPE |
| powered down-fire |
| WOOFER SIZE (in, cm) |
| 12, 30 |
| RMS POWER (watts at 14.4v) |
| 600 |
| PHASE SWITCH |
| 0-180° |
| FREQUENCY RESPONSE (Hz) |
| 25-120 |
| S-TO-N RATIO (A-weighted, re: rated power) |
| >90dB |
| INPUT SENSITIVITY |
| Low Level – 125mV-5V; High Level – 1V-40V |
| CROSSOVER |
| active 24dB/octave, variable 50-120Hz low pass; 24dB/octave, high pass at 25Hz |
| BOX HEIGHT (in, cm) |
| 7-7/8, 20.2 |
| BOX DEPTH (in, cm) |
| 15, 38 |
| BOX WIDTH (in, cm) |
| 23-7/8, 60.5 |
| Warranty |
| When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase. - Complete warranty information here. |
