VXA600.5 5-Channel Amplifier
FOR INTERNATIONAL DISTRIBUTION ONLY
The VXA600.5 5-Channel Amplifier is built to power an entire mobile-audio system, including your subwoofer!
Model: 53VXA6005
Model: 53VXA6005
Class-Leading Power
- Class D full-range channels for lower current draw and longer playing time
- Bass channel lets one amp run an entire system

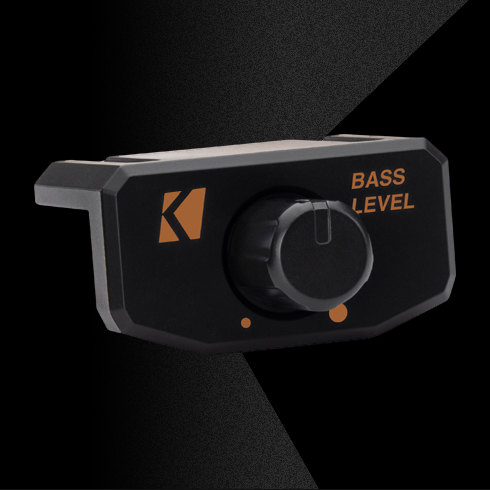

- Remote Bass Control for fingertip tuning (sub channel)
- Variable 12dB crossovers for ideal speaker matching
- 24dB subsonic filter for protection from potentially damaging frequencies
- KickEQ™ variable bass boost for louder low frequencies
- KICKER FIT™ (Fail-safe Integration Technology) means it works with nearly every radio
- Small footprint for easy installation
- Compatible with start/stop vehicle technology
- Class SB source-unit-compatible to use in compact audio systems
Specifications
| Power (watts/ch), 2 Ohm Stereo: |
| 75 x 4 |
| Power (watts/ch), 4 Ohm Stereo: |
| 50 x 4 |
| Power (watts/ch), 4 Ohm Bridged Mono: |
| 150 x 2 |
| Power (watts/ch), 2 Ohm Mono: |
| 300 x 1 |
| Power (watts/ch), 4 Ohm Mono: |
| 150 x 1 |
| **Dynamic Power (watts): |
| 750 |
| Frequency Response (Hz): |
| Amp1/2 10-20k (+0/-1dB); Sub 10-200 (+0/-6dB) |
| Dimensions (in, cm): |
| Height: 2-3/16 (5.6 cm) Width: 5-29/32 (15 cm) Length: 11-5/32 (28.3 cm) |
| Input Sensitivity: |
| 125mV-10V (Low Level) |
| Signal-to-Noise Ratio: |
| Amp1/2 >95dBÂ (A-weighted, re: rated power); |
| Selectable Electronic Crossover: |
| 12dB/octave, AMP1/2: variable HP 10-200Hz; SUB: variable LP 50-200Hz |
| Subsonic Filter (sub ch only): |
| fixed 15Hz, 24dB/octave |
| KickEQ Bass Boost (sub ch only): |
| variable 0-6dB @ 40Hz |
| Warranty |
| When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase. - Complete warranty information here. |
*RMS Power test @ 14.4v @ _ 1% THD+N, Audio Precision® analyzer, see www.kicker.com/amp-power-testing for details.
**Dynamic Power test @ 14.4v @ _ 10% THD+N, Audio Precision APx500 analyzer, see www.kicker.com/amp-power-testing for details.
Audio Precision is a registered trademark of Audio Precision in the United States and other countries.
