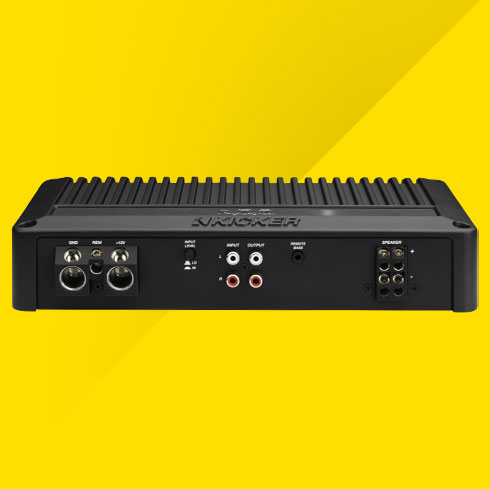

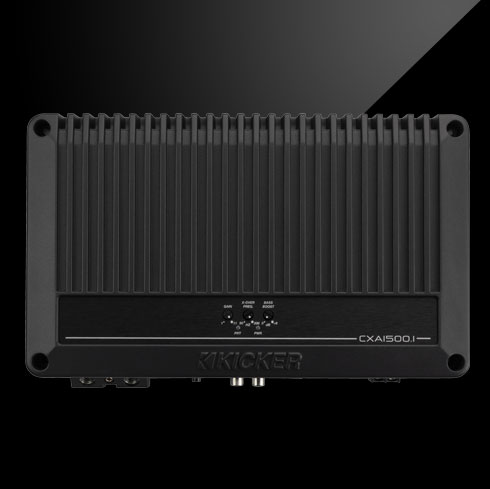

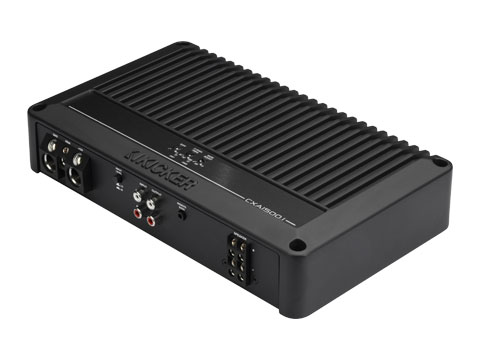

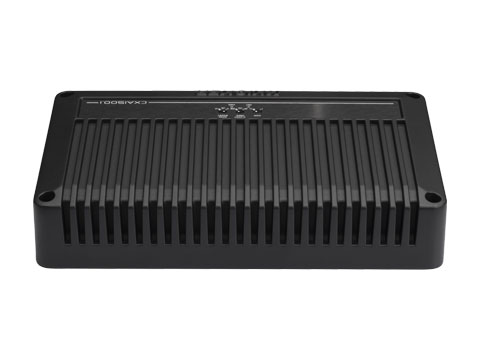

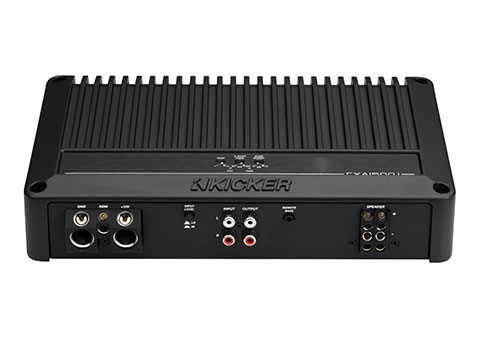

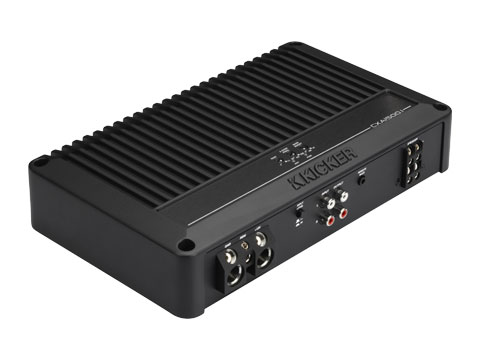

CX1500.1 Mono Amplifier
Model: 53CXA15001
About that Power
CX-Series Mono Amps are one-ohm stable, giving you even more power and wiring options for your system! This Class-D CXA1500.1 supplies even more bass power than its predecessor, and it features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump. A precise 24dB crossover and 24dB subsonic filter is included, letting you quickly tune your system to perfection while providing proper protection. Use the full-range outputs to expand your system with other bass amps or a full-range amp to complete your sound. From your dash, a simple turn of the optional CXARC Remote Bass Controller (sold separately) increases your output to fit your choice of music.
CXA-Series Amplifiers accept up to 40 volts (400 watts) of speaker-level input signal. This kind of flexibility both makes line-out converters unnecessary and optimizes your sound quality at the same time!
This CXA.1 Amplifier delivers as much as 1500 watts into one bass channel. See below for more details.
Features
- Class-D Design for lower current draw and operating temperatures, and active thermal rollback for all-day play
- FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
- 24dB/octave LP Crossover for cleaner bass, reduced distortion, and improved subwoofer power handling
- 24dB Subsonic Filter for protection from potentially damaging frequencies
- Gain-Match LED Indicator for dialing in the perfect gain setting
- KickEQ™ Boost variable up to 6dB for louder deep bass
- Accepts up to 40-volt input signal
- Three-second turn-on / off delay to eliminate unwanted interference
- Small footprint for easier installation
- Compatible with CXARC Remote Bass Control
If you have two mono amps or powered subwoofers, check out the DBRC Remote for controlling both from the same knob.
Specifications
| CXA1500.1 White Paper |
| TBA |
| *RMS Power [Watts Channel] @ 14.4V |
|
1Ω mono: 1500W 2Ω mono: 1000W 4Ω mono: 550W |
| **Dynamic Power [Watts] |
| 1650 |
| Frequency Response [Hz] |
| 15-200, +0/–6dB |
| Signal-to-Noise Ratio (ref: rated power) |
| >95dB |
| Signal-to-Noise Ratio (ref: 1W output) |
| >75dB |
| Dimensions [in, cm] |
|
Height: 2-7/32 (5.6cm) Width: 6-27/32 (17.4cm) Length: 11-13/32 (29cm) |
| Input Sensitivity |
|
High level 1V–40V Low level 125mV–5V |
| Electronic Crossover |
| variable Lo-Pass 50–200Hz, 24dB/octave LR |
| Subsonic Filter |
| Hi-Pass 15Hz @ 24dB/octave |
| KickEQ™ Bass Boost |
| variable 0-6dB @ 40Hz |
| CXARC Remote Bass Capable [sold sep.] |
| yes |
| Warranty |
|
When purchased from an Authorized KICKER Dealer or kicker.com,
KICKER warrants this product to be free from defects in material
and workmanship under normal use for a period of TWO (2) YEARS
from date of original purchase.
Complete warranty information here. |
*RMS Power test @ 14.4V @ < 1% THD+N, Audio Precision® APx500 analyzer, see www.kicker.com/amp-power-testing for details.
**Dynamic Power test @ 14.4V @ < 10% THD+N, Audio Precision APx500 analyzer, see www.kicker.com/amp-power-testing for details.
Audio Precision is a registered trademark of Audio Precision in the United States and other countries.
