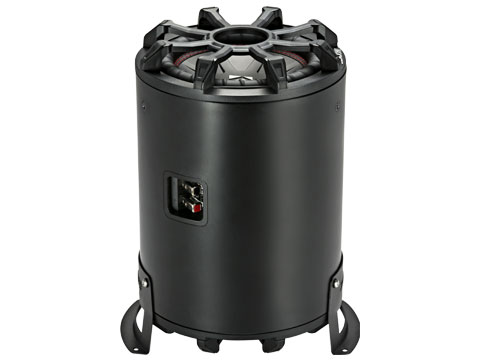

TB Enclosure front
TB Enclosure three-quarter
TB Enclosure three-quarter
TB Enclosure vertical
enlarge front
enlarge three-quarter
enlarge three-quarter
enlarge vertical
8" 2 Ω TB Enclosure
Mount them nearly anywhere - KICKER TB Eight-Inch Tube Speakers are awesome bass-makers that pound!

model: 46CWTB82

TUBE POWER

Ultra-deep and surprisingly loud, TB subs mount in your trunk or your truck with equal ease. You get the bump you want without losing the space you need.

Features:

  • Two Ohm Speaker
  • Thick ABS Tube Construction
  • Flexible Horizontal or Vertical Mounting System
  • Spring-Loaded Speaker Terminals
  • CompR Woofer and Reflex Sub
  • Ceramic Magnet
  • Advanced Heat Management System
  • Signature Double Red Stitching
  • Grilles included

This TB Eight-Inch Tube Speaker works best with 300 watts of recommended power.

Specifications
Type
Reflex
Size (in., cm)
8, 20
Impedance (ohms)
2
Recommended Amplifier Power (watts RMS)
300
Peak Power (watts, per ANSI/CTA-2031-A)
600
Sensitivity (dB 1w/1m)
84.4
Tuning Frequency [Hz]
31
Box Top Depth (in, cm)
-
Box Bottom Depth (in, cm)
12-7/8, 32.8
Box Height (in, cm)
Vert. Mount: 13-7/16, 34.1; Horiz. Mount: 8-5/8, 21.9
Box Width (in, cm)
8-1/2, 21.6
What's in the Box:
1 - enclosure assembly
2 - vertical mounting brackets
1 - horizontal mount base
1 - Horizontal mount hook(retainer)
1 - Horizontal mount plate(retaining clamp)
7 - stainless steel M5 x 12mm button head screws for horizontal mount plate to base and mounting brackets to enclosure
11 - nylon flat washers (to be used on all mounting fasteners)
4 - stainless steel pan head phillips M4 x 25mm (for mount base to vehicle)
1 - owner’s manual
2 - Kicker stickers
Warranty
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. - Complete warranty information here.
