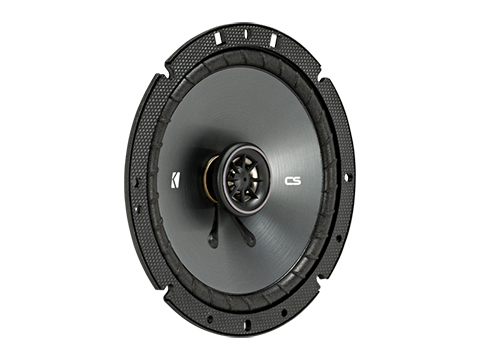

CS Series CSC67
The CS Series delivers remarkable performance and ultra-clean bass, utilizing a heavy-duty motor/magnet structure featuring EVC™ (Extended Voice Coil) technology not found in stock speakers. They use polypropylene cones with tough, ribbed, UV-treated surrounds for precise linear excursion and reliability.

CS Series CSC67

The CS 6-3/4-Inch Coaxial Speakers are the perfect factory upgrade.

These coaxial speakers are an excellent way to upgrade your sound. A st amped steel framework supports a rigid polypropylene cone with EVC™ (Extended Voice Coil) technology, for the best sonic quality and deep, rich bass.

These CS speakers work best with 100 watts of recommended power. See below for more details.

Specifications
Speaker Design
2 - way
Woofer Size | in [mm]
6 3/4 [165]
Tweeter Size | in [mm]
1/2 [13]
DC Resistance | ohm
3.3
Peak Power | Watts
300
Continuous Power | Watts, RMS
100
Sensitivity [SPLo] | dB @ 1W, 1m
90
Effective Frequency Range | Hz
40-20k
Mounting Hole Diameter | in [mm]
5 1/2 [140]
Top Mount Depth | in [mm]
3/16 [4]
Bottom Mount Depth | in [mm]
1 13/16 [47]
Tweeter Protrusion | in [mm]
0
Grilles
Yes
Tweeter Magnet Material
Neodymium
Tweeter Dome Materia
PEI [polyether imide
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
Support

Manuals


2016 CS Coaxials | Multilingual | Download
