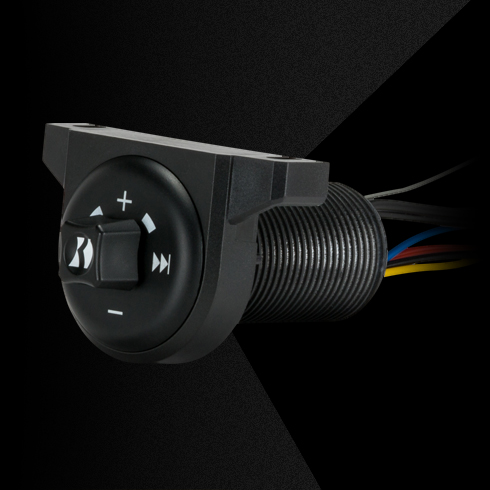

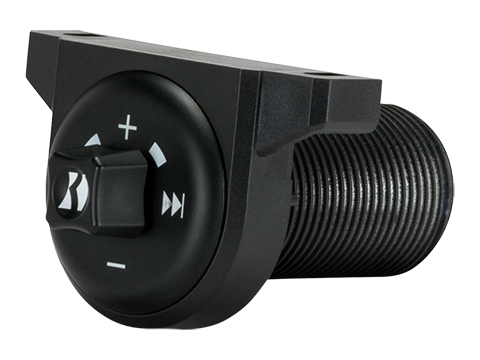

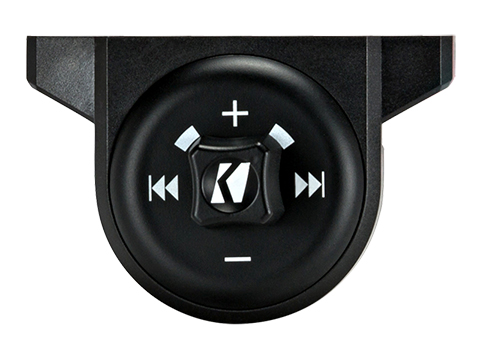

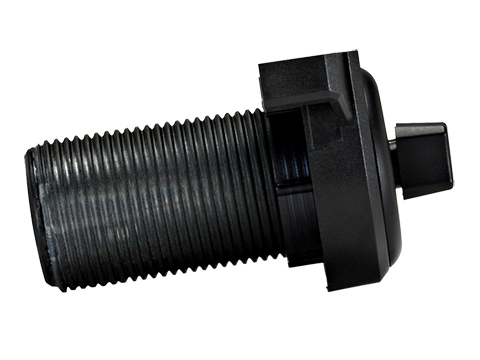

Bluetooth Interface Controller
Add Bluetooth to any audio system with this simple, weatherproof controller. Built as tough as the trails you ride, the PXBTC makes it easy to change source, volume or track at any speed – on any terrain.
PXBTC

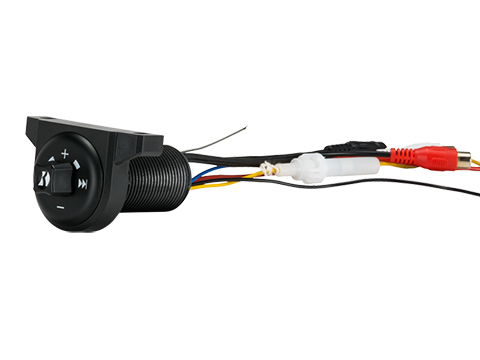

Get the control you need on the trails you love! Equipped with a stereo RCA output and 3.5mm AUX input, the PXBTC Bluetooth Controller automatically pairs with your phone and mutes the music for incoming calls.
Specifications
| Frequency Response |
| (-3db): 20Hz-20KHz |
| THD (250mV 1kHz, AUX input, 2.5V output) |
| <0.01% |
| S/N Ratio (AU-Weight) ref 5V, minimum volume |
| >100dB |
| 3.5mm Stereo Aux Input sensitivity |
| 500mV |
| RCA Output Voltage – Max. (1kHz input, 1% THD) |
| 5V |
| Total Mounting Depth [in, mm] |
| 2-9/16, 65 |
| Protrusion from Mounting Surface [in, mm] |
| 5/8, 16 |
Support
Manuals
2016 PXBTC | Multilingual | Download
2016 PXBTC Insert | Multilingual | Download
