QS speakers with crossovers
QS speakers
QS speakers
QS crossover
enlarge speakers
enlarge speaker
enlarge speaker
enlarge crossover
QS Series 6.75" Coaxials
Our QSC Coaxial speakers are built to KICKER’s® highest acoustic standards. These 6-¾-inch point source drivers feature neodymium magnets on the woofer and tweeter, and are bi-amp capable.

*Find additional fitment information below that is specific to these speakers.

QS Series 6.75" Coaxials

The QSC drivers includes a revolutionary 25mm Teteron® dome tweeter and custom wave guide for near perfect phase alignment for smooth frequency response. The injection-molded Polypropylene cone is impregnated with carbon-fiber for tight, accurate midrange. An NBR rubber surround provides superior damping, and complemented by KICKER’s signature blue double surround stitching.

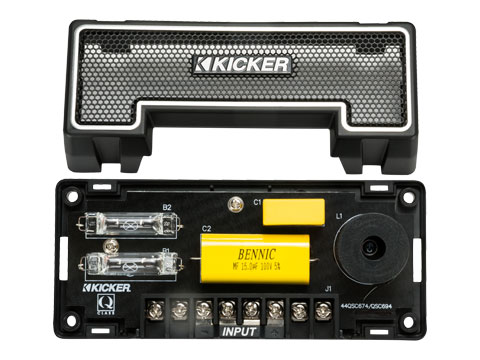

The independent 18dB crossover has been optimized for size, and features built-in tweeter protection. Utilizing Metallized Polypropylene capacitors, high-powered resistors and audiophile-grade air-core inductors, the crossover delivers outstanding overall sound quality and easy mounting in a door or under a seat.

These QSC speakers work best with 100 watts of recommended power. See below for more details.

These speakers also include adaptor rings, allowing the speakers to be installed using factory speaker mounting points:

Make Model Years
Toyota Tacoma 2005-2017
Toyota Tundra 2007-2017
Ford F150 2015-2017
Ford F250/F350 2017
Chevrolet/GMC Colorado/Canyon 2015-2017
Chevrolet/GMC Silverado/Sierra 2007-2017
Dodge Ram 1500 2009-2017
Dodge Ram 2500/3500 2010-2016
Specifications
Woofer (in., mm)
6-¾, 165
Tweeter (in., mm)
1, 25
Tweeter dome material
Teteron®
Rated Impedance [Ω]
4
Recommended Amplifier Power (watts RMS)
100
Peak Power (watts, per ANSI/CTA-2031-A)
200
Sensitivity [1W, 1m]
86dB
Frequency Response [Hz]
40-20k
Woofer Mounting Hole Diameter [in, mm]
5-9/16, 141
Woofer Mounting Depth [in, mm]
2-9/16, 64.9
High Pass [dB], at Frequency [Hz]
18, 5.5k
Low Pass [dB], at Frequency [Hz]
18, 5.5k
Comments
Crossover is bi-amp capable.
