L7R Enclosure front

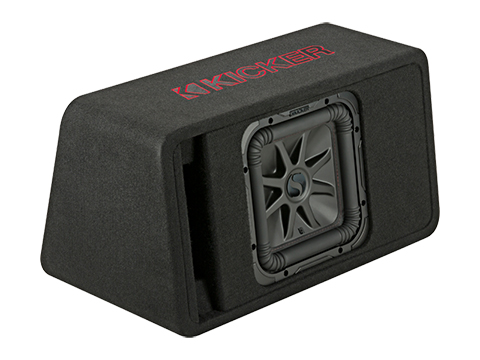

L7R Enclosure three-quarter

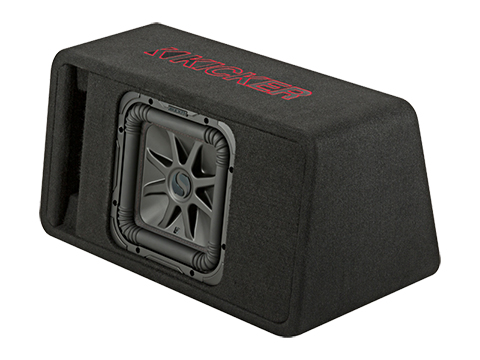

L7R Enclosure three-quarter

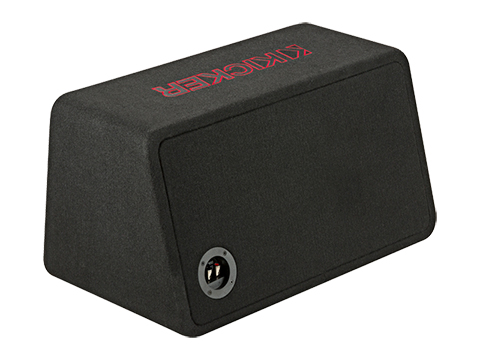

L7R Enclosure back
enlarge front
enlarge three-quarter
enlarge three-quarter
enlarge back
Single 10" L7R Enclosure
The L7R 10-inch Subwoofer Enclosure is the perfect fit in your trunk and in your life.

Model: 45VL7R102

Single 10" Solo-Baric L7R 2-Ohm Enclosure

KICKER’s square sub technology features patented ribbed corners, UniPlate™ solid pole piece and backplate, and injection-molded SoloKon™ cone system. You get up to 20% more volume compared to a round driver, so you move more air and get more bass! Combined with an optimized front-facing port, reinforced MDF construction, rounded corners and thick black carpet, you get big bass without the expense of a custom enclosure.

Hook up a CX amp to this bass wedge to start Livin’ Loud!

Features:

  • Genuine L7R Subwoofer Included
  • Front-Facing Port Design for loudest possible bass
  • Angled Back for Excellent Fit
  • Heavy Internal Bracing makes is last for years
  • Single 2-Ohm Terminal for quick installation
  • Easy to Install and Wire
  • Thick Black Carpeting to handle bumps and scrapes
  • Aesthetically pleasing Rounded Corners
  • Embroidered KICKER Logo
  • Thick MDF Construction

*The compact L7R 10-inch Subwoofer Enclosure works best with 500 watts of recommended power. See below for more details.

Specifications
Type
single
Woofer [in, cm]
Solo-Baric L7R 10" 2Ω
Impedance [Ohms]
2
Recommended Amplifier Power [watts RMS]
500
SENSITIVITY [dB 1w/1m]
88.8
Tuning Frequency [Hz]
33
Box Top Depth (in, cm):
8-1/4, 21
Box Bottom Depth (in, cm):
13-7/8, 35.1
Box Height (in, cm):
13, 33
Box Width (in, cm):
24, 61
What's in the box?
one loaded enclosure with one 10-inch subwoofer
mounting hardware (4 - black brackets, 4 - #10 black wood screws x 20mm, 8 - #8 black wood screws 20mm long)
one owner's manual
two stickers
Warranty
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. - Complete warranty information here.
