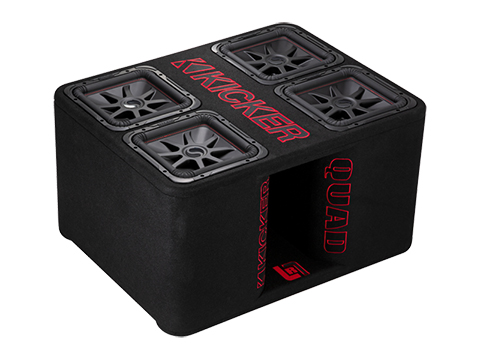

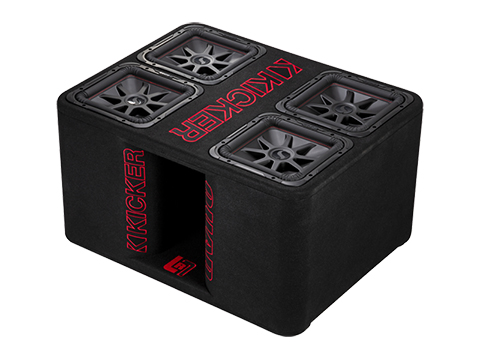

QUAD 12" L7R 2-Ohm Enclosure
COMING SPRING 2020!
$1,499.95
4 x 12 Loaded Subwoofer Enclosure
Get seriously loud with this hardcore basshead box.

READY TO RUMBLE

With 2,400 watts of RMS power handling, this computer-designed basshead subwoofer system makes rattling your ride easier than ever!

GO LOW

Four KICKER L7R 12-inch subs come pre-loaded in this enclosure. The port is flared perfectly and tuned to 31Hz for some serious bump - without the expense of a custom enclosure.

BRACED FOR IMPACT

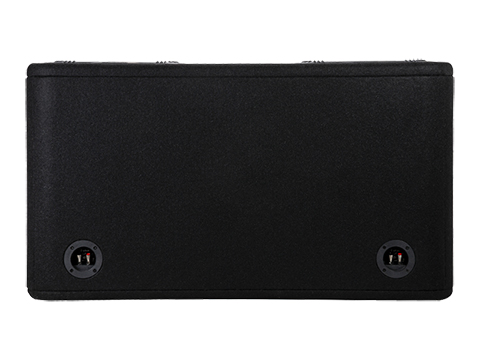

The QUAD box is made to take the pressure! Heavy, birch-veneer plywood construction and thick internal bracing keeps the enclosure stable, even under extreme SPL levels. Covered in durable black carpet and custom embroidered with the KICKER logo, the QL7R12 is pre-wired to a pair of two-Ohm terminals. All you need is an amp!

Specifications
Type
QUAD
Woofers/size [in, cm]
4 Solo-Baric L7R 12, 30
Impedance [Ohms]
Dual 2-Ohm Terminals
Recommended Amplifier Power (watts RMS)
2400
SENSITIVITY [dB 1w/1m]
98
Box Depth (in, mm):
28, 711
Box Height (in, mm):
20-1/4, 514
Box Width (in, mm):
35-7/8, 912
What's in the box?
1 47QL7R122, 1 enclosure hardware pack, 1 instruction manual, 2 KICKER stickers,
1 47QL7R122, 1 massive sub enclosure, 1 enclosure mounting bracket kit,
Quick Start Guide w/link to full Guide (via QR Code).
