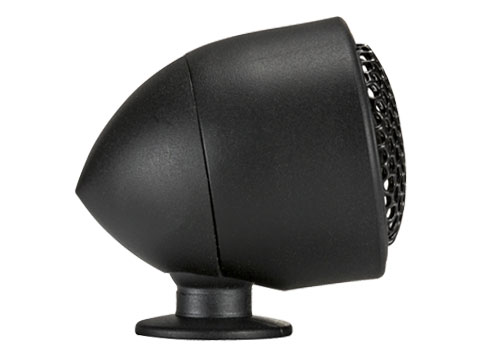

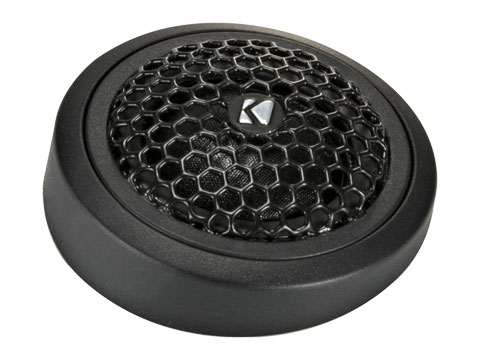

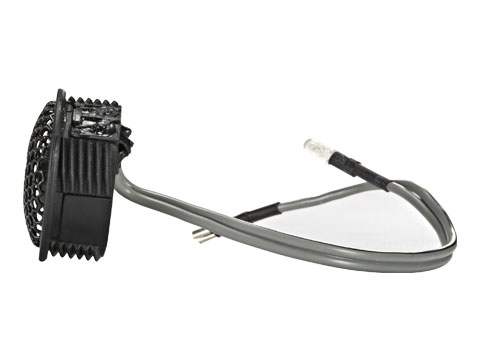

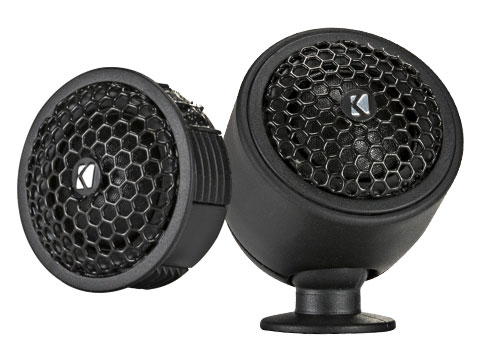

KS Series ¾" Tweeter
KICKER’s® elite KS tweeter upgrade has extended frequency range and high power handling, making it an excellent addition when you crave more volume and realism.

RE-DEFINE REALITY

KS-Series ¾-inch Tweeters use a silk dome to reproduce your music with incredible smoothness and accuracy. Comes complete with flush, angled and surface-pod mounting options and an in-line 12dB crossover.

Features:

  • Silk-dome tweeters for a smooth, natural sound
  • Four tweeter mounting options (hardware included)
  • Extended frequency response for ultimate listening
  • Lightweight neodymium magnets provide efficient highs
  • In-line 12dB crossover included
  • Poly-switch protection
  • Grilles included

KS-Series Tweeters work best with 65 watts of recommended power. See below for more details.

Mounting Options

Mounting Options

When it comes to mounting your tweeters, the KS Series ¾" Tweeter gives you plenty to choose from!

Specifications
Tweeter [in,mm]
¾, 20
Tweeter Dome Material
Silk
Rated Impedance [Ω]
4
Peak Power (watts, per ANSI/CTA-2031-A)
125
Recommended Amplifier Power (watts RMS)
15-65
Sensitivity [1W, 1m]
92
Frequency Response [Hz]
4500-21k
Flush Mount Tweeter Depth [in, mm]
916 , 14
Flush Mount Tweeter Hole Diameter [in, mm]
1-916 , 40
High Pass [dB], at Frequency [Hz]
12, 4500
Support

Manuals


2019 KS Tweeters | Multilingual | Download
