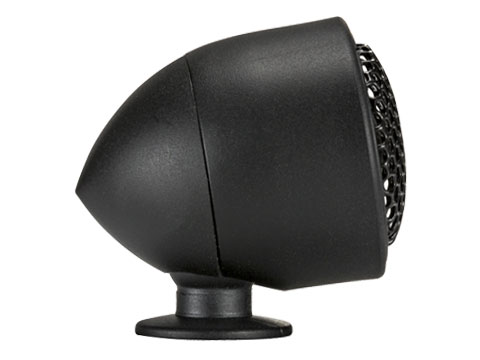

KS Series 1" Tweeter
KICKER’s® elite KS tweeter upgrade has extended frequency range and high power handling. When you crave more volume and realism – you found the perfect option!

THE NATURAL SOUND

KS-Series one-inch Tweeters uses a silk dome to reproduce your music with incredible smoothness and accuracy. Comes complete with flush, angled and surface-pod mounting options and an in-line 12dB crossover.

Features:

  • Silk-dome tweeters for a smooth, natural sound
  • Four tweeter mounting options (hardware included)
  • Extended frequency response for ultimate listening
  • Lightweight neodymium magnets provide efficient highs
  • In-line 12dB crossover included
  • Poly-switch protection
  • Grilles included

KS-Series Tweeters work best with 75 watts of recommended power. See below for more details.

Mounting Options

Mounting Options

When it comes to mounting your tweeters, the KS Series 1" Tweeter gives you plenty to choose from!

Specifications
Tweeter [in,mm]
1, 25
Tweeter Dome Material
Silk
Rated Impedance [Ω]
4
Peak Power (watts, per ANSI/CTA-2031-A)
225
Recommended Amplifier Power (watts RMS)
10-75
Sensitivity [1W, 1m]
94
Frequency Response [Hz]
3500-21k
Flush Mount Tweeter Depth [in, mm]
12, 12
Flush Mount Tweeter Hole Diameter [in, mm]
1-¾, 45
High Pass [dB], at Frequency [Hz]
12, 3500
Warranty
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase. - Complete warranty information here.
