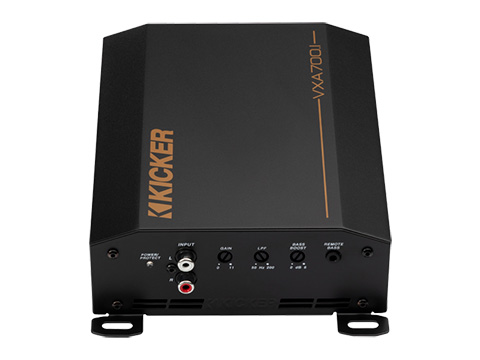

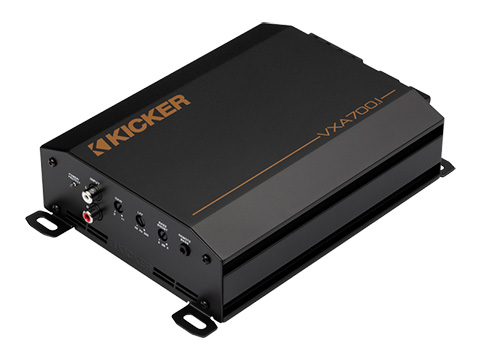

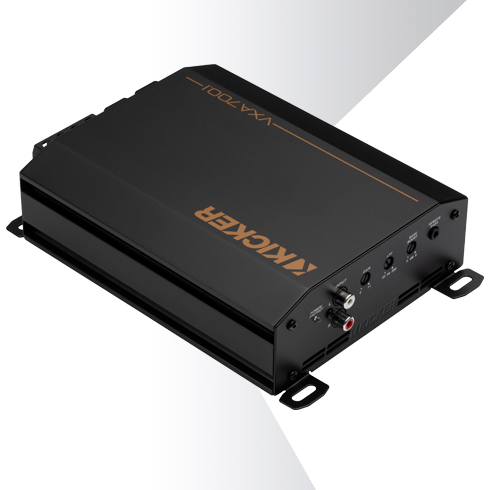

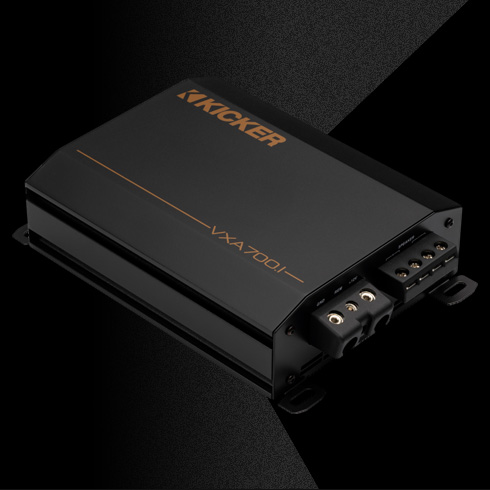

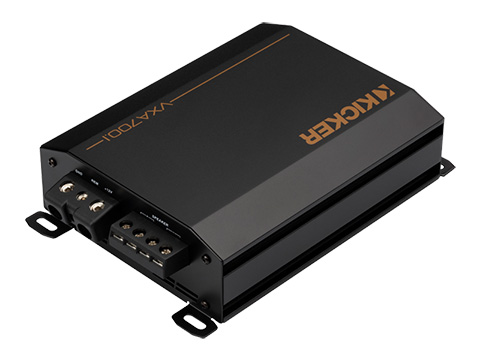

Model: 53VXA7001
Class-Leading Power
- Class-D mono channel for lower current draw and longer playing time
- Mono power stable to 1 Ohm for louder bass
- Remote Bass Control for fingertip tuning
- Variable 12dB crossovers for ideal speaker matching
- 24dB subsonic filter for protection from potentially damaging frequencies
- KickEQ™ variable bass boost for louder low frequencies
- KICKER FIT™ (Fail-safe Integration Technology) means it works with nearly every radio
- Small footprint for easy installation
- Compatible with start/stop vehicle technology
- DC-offset automatic turn on
- Class SB-compatible for OEM integration within Class-SB head units
Power Pack
The VXA-Series Mono Amp is one-ohm stable, giving you even more power and wiring options for your system! This Class-D VXA700.1 features a variable bass boost with KickEQ™, giving you as much as a 6dB of extra bump.
Remote Ready

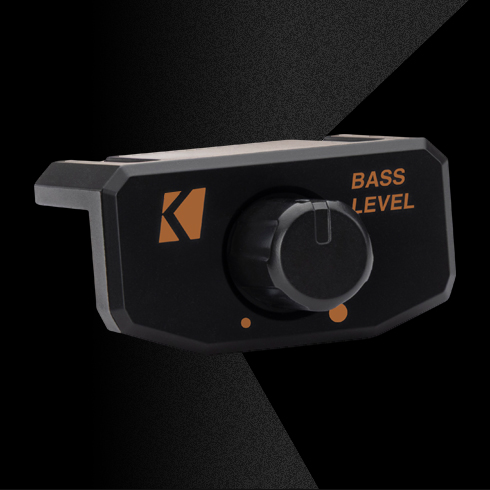

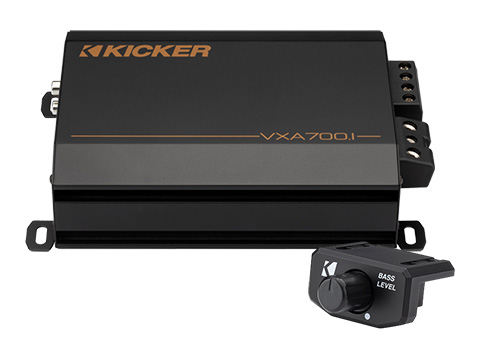

VXA-Series Amplifiers with mono channels include the VXARC Remote Bass Knob. Use it to customize your bass on the fly with just a turn of a dial!
| Power (watts/ch), 1 Ohm Mono: |
| 700 x 1 |
| Power (watts/ch), 2 Ohm Mono: |
| 500 x 1 |
| Power (watts/ch), 4 Ohm Mono: |
| 250 x 1 |
| **Dynamic Power (watts): |
| 900 |
| Frequency Response (Hz): |
| 10-200 (+0/-6dB) |
| Dimensions (in, cm): |
| Height: 2-3/16 (5.6 cm) Width: 5-29/32 (15 cm) Length: 8-15/16 (22.7 cm) |
| Input Sensitivity: |
| 125mV-10V |
| Signal-to-Noise Ratio: |
| >95dB (A-weighted, re: rated power) |
| Selectable Electronic Crossover: |
| 12dB/octave, variable LP 50-200Hz |
| Subsonic Filter: |
| fixed 15Hz, 24dB/octave |
| KickEQ Bass Boost: |
| variable 0-6dB @ 40Hz |
| Warranty |
| When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase. - Complete warranty information here. |
*RMS Power test @ 14.4v @ _ 1% THD+N, Audio Precision® analyzer, see www.kicker.com/amp-power-testing for details.
**Dynamic Power test @ 14.4v @ _ 10% THD+N, Audio Precision APx500 analyzer, see www.kicker.com/amp-power-testing for details.
Audio Precision is a registered trademark of Audio Precision in the United States and other countries.
Files
VXA7001 Amplifier Manual | Not yet available
VXA7001 White Paper | 53VXA7001-wp.pdf
