12" CompC 4 Ohm SVC
Huge value. High performance. The KICKER® CompC™ Subwoofer pumps out the bass with all the intensity your ears can handle.

12" CompC 4 Ohm SVC

Perimeter venting keeps the air free-flowing around the motor structure. With a KICKER sub that doesn’t overheat, you get high-performance bass that keeps the music pounding.

Features:

  • Four-Ohm Voice Coil
  • Injection-Molded Polypropylene Cone
  • Perimeter Venting for Thermal Management
  • Ribbed Polyurethane Surround
  • Signature Yellow Surround Stitching
  • High-Strength Spiralead™ Tinsel Leads
  • Stamped Steel Basket
  • High Temp Voice Coil
  • Spring-Loaded Speaker Terminals

Want setup help? Go to KICKERU for a free woofer & amplifier configuration app!

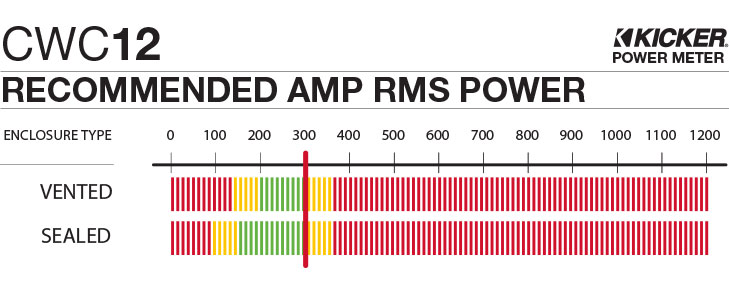

*The CompC 12-Inch Subwoofer works best with a sealed or ported enclosure and 300 watts of recommended power. See below for more details.

Specifications
Thiele/Small Parameters
44CWCS124 T/S Parameters
Size (IN.,CM)
12, 30
Impedance (OHMS)
4 SVC
Recommended Amplifier Power (watts RMS)
300
Peak Power (watts, per ANSI/CTA-2031-A)
600
Sensitivity (dB 1w/1m)
88.3
Frequency Response (Hz)
27-500
Mounting Depth (in, cm)
5-3/8, 13.6
Mounting Cutout (in, cm)
11, 27.9
Min Sealed Box Vol (cu. ft, L)
1.25, 35.4
Max Sealed Box Vol (cu. ft, L)
3.5, 99.1
Min Vented Box Vol (cu. ft, L)
1.75, 49.6
Max Vented Box Vol (cu. ft, L)
2.25, 63.7
Warranty
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. - Complete warranty information here.

*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.

**Port Volume Excluded.

Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
