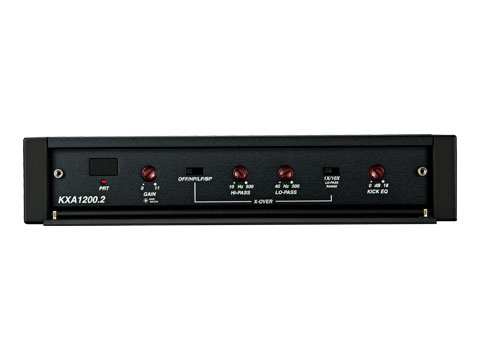

KXA1200.2 controls
enlarge three-quarter
enlarge door open
enlarge terminals
enlarge controls
KXA1200.2 Amplifier
KICKER® KX stereo amplifiers deliver unrivaled power and control in a sleek black anodized aluminum chassis.

download test tones

KXA1200.2 Amplifier

This KX 1200-watt stereo amplifier is built for massive full range power. Find your amp’s sweet spot with our built-in clipping indicator, then enjoy an enormous 18dB of bass boost with KickEQ+™.

Features:

  • Class D Power Plant
  • Gain Control With "Optimal Input" Indicator. Test tones available here!
  • FIT2™ (Fail-Safe Integration Technology) Circuitry
  • Variable 24dB Crossover
  • DSP-Controlled Preamp
  • KickEQ+™ 18dB Variable Bass Boost
  • Easy Access to Settings Behind Hinged Panel
  • Black Anodized Aluminum Chassis
  • Top-Mounted Red LED Light Pipe

Want setup help? Go to KICKER U for a woofer & amplifier configuration app!

This KX amplifier delivers up to 600 watts per channel. See below for more details.

Specifications
RMS Power [Watts]
@ 14.4V, 4Ω stereo, ≤ 1% THD+N : 300 x 2
@ 14.4V, 2Ω stereo, ≤ 1% THD+N : 600 x 2
Length [in, cm]
11-316 , 28.4
Height [in, cm]
2-⅛, 5.5
Width [in, cm]
8-516 , 21
Frequency Response ± 1dB
10Hz–20kHz
Signal-to-Noise Ratio
95dB
Input Sensitivity
250mV–10V
Selectable Electronic Crossover
Off
Variable HP, 10-500Hz
Variable LP, 40-500Hz; 400Hz–5,000Hz with 10X Switch (BP capable)
Slope: 24dB/octave
KickEQ™ Bass Boost
0-18dB @ 40Hz
CEA Power
300 x 2 @ 4 ohms, 14.4VDC, 1% THD, CEA-2006B (Watts)
CEA Signal-to-Noise Ratio
-75dB CEA-2006B (ref: 1W, A-weighted)
Support

Manuals


2017 Stereo Amplifier | Multilingual | Download
