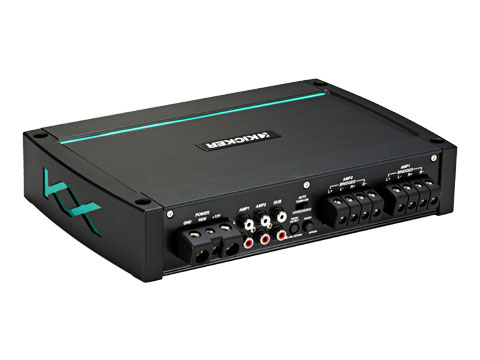

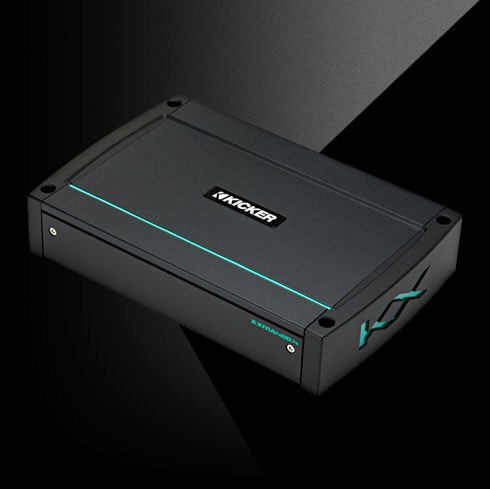

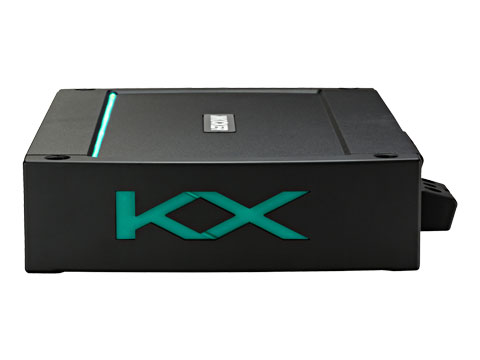

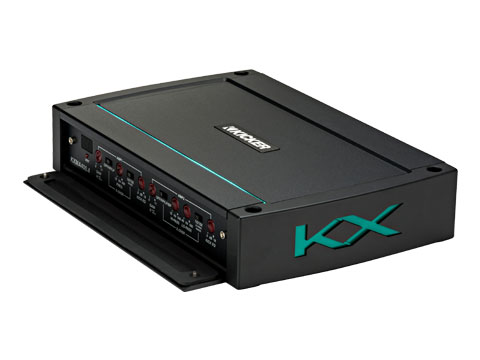

KXMA400.4 Amplifier
The KXM 400-watt four-channel amplifier is flexible enough to be a full system solution, or serve as the power for your mid and high-range speakers. KickEQ+™ delivers as much as an 18dB of extra bump with a simple turn of the knob, and powerful 24dB crossover is also included to letting you quickly tune your system to perfection.
Features:
- Class D Power Plant
- Gain Control With "Optimal Input" Indicator
- FIT2™ (Fail-Safe Integration Technology) Circuitry
- Variable 24dB Crossover
- DSP-Controlled Preamp
- KickEQ+™ 18dB Variable Bass Boost
- ABYC/NMMA Compliant Power Terminals
- Conformal-Coated Circuit Boards
- Easy Access to Settings behind Gasket-Sealed Cover Panel
- Black Anodized Aluminum Chassis
- Top-Mounted Teal LED Light Pipe
- Stainless Steel Mounting Hardware Included
Want setup help? Go to KICKER U for a free woofer & amplifier configuration app!
This KXM amplifier delivers up to 100 watts per channel (4 channels driven), or 200 watts into two sets of bridged channels. See below for more details.
| RMS Power [Watts] |
| @ 14.4V, 4Ω stereo, ≤ 1% THD+N: 50 x 4
@ 14.4V, 2Ω stereo, ≤ 1% THD+N: 100 x 4 @ 14.4V, 4Ω bridged mono, ≤ 1% THD+N: 200 x 2 |
| Length [in, cm] |
| 11-3∕16 , 28.4 |
| Height [in, cm] |
| 2-⅛, 5.5 |
| Width [in, cm] |
| 8-5⁄16 , 21 |
| Frequency Response [Hz] |
| 10Hz–20kHz |
| Input Sensitivity: |
| 250mV–10V |
| Signal-to-Noise Ratio |
| 95dB |
| Selectable Electronic Crossover |
| Amp 1: OFF/HP/LP; Variable 10–5,000Hz with X10 switch
Amp 2: OFF/HP/LP/BP; Variable HP, 10–500Hz; Variable LP, 40–5,000Hz with 10X switch Slope: 24dB/octave |
| KickEQ™ Bass Boost |
| 0-18dB @ 40Hz |
| CEA Power |
| 50 x 4 @ 4 ohms, 14.4VDC, 1% THD, CEA-2006B (Watts) |
| CEA Signal-to-Noise Ratio |
| -75dB CEA-2006B (ref: 1W, A-weighted) |
Manuals
2017 KXM Stereo Amplifier | Multilingual | Download
