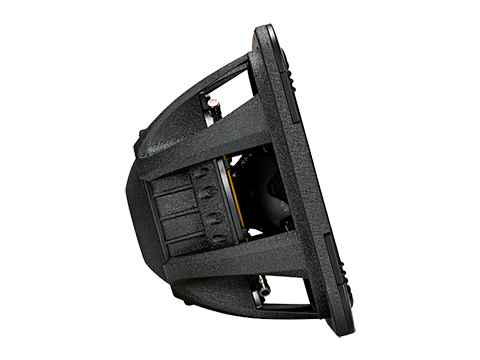

12 inch L7S side

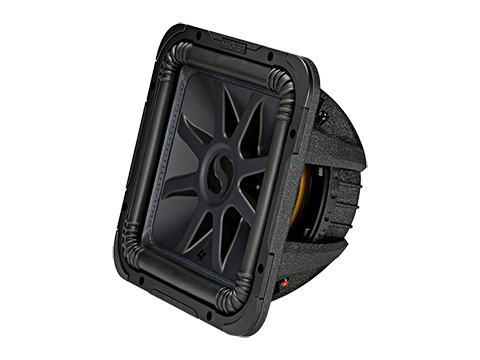

12 inch L7S three-quarter
12 inch L7S back
enlarge front
enlarge side
enlarge three-quarter
enlarge back
12" Solo-Baric L7S 2 Ohm
The KICKER® Solo-Baric® L7S™ has a unique cone structure and heat dissipation system for outstanding power handling and unsurpassed clarity.

model: 44L7S122

Square Matters

The Solo-Baric L7's highly-engineered motor structure and square sub design promises dependability when pushed to the limit, while dual voice coils with high-temp copper windings easily handle intense heat and power levels for clean, clear bass anytime.

Features:

  • Dual Two-Ohm Voice Coils
  • Injection-Molded Polypropylene Cone
  • Patented Corner Ribs Minimize Distortion
  • SoloKon™ 360-Degree Back Bracing
  • Ribbed Santoprene Surround With Blue Surround Stitching
  • UniPlate™ Back Plate And Pole Piece, Plus Perimeter Venting For Excellent Thermal Management
  • Thick Tinsel Leads
  • Large Ceramic Magnet
  • Cast Aluminum Basket
  • Satin-Nickel Plated, Spring-Loaded Speaker Terminals

Want setup help? Go to KICKERU for a free woofer & amplifier configuration app!

*The Solo-Baric L7S 12-Inch Subwoofer works best with a sealed or ported enclosure and 750 watts of recommended power. See below for more details.

Specifications
Thiele/Small Parameters
44L7S122 T/S Parameters
Product Dimension Sheet
44L7S122 Dimensions
Size (IN.,CM)
12, 30.5
Impedance (OHMS)
2 DVC
Recommended Amplifier Power (watts RMS)
750
Peak Power (watts, per ANSI/CTA-2031-A)
1500
Sensitivity (dB 1w/1m)
88.6
Frequency Response (Hz)
20-100
Mounting Depth (IN.,CM)
6-11/16, 16.9
Mounting Cutout, Square (IN.,CM)
11-1/16, 28.1
Min Rec Sealed Box Volume (CU. FT., Liters)
1.25, 35.4
Max Rec Sealed Box Volume (CU. FT., Liters)
2.0, 56.64
Min Rec Vented Box Volume (CU. Ft., Liters)**
1.75, 49.6
Max Rec Vented Box Volume (CU. Ft., Liters)**
3.25, 92.1
What's in the box?
one 12-inch subwoofer, one owner's manual, two stickers
Warranty
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. - Complete warranty information here.

*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.

**Port Volume Excluded.

Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
