12" SoloXS L7XS 1 Ohm
Are you ready for KICKER's pinnacle subwoofer line? It just keeps getting bigger and badder!
model: 52L7XS121
model: 52L7XS121
Incomparable
SoloXS always promises high-excursion design, made for ultra-deep bass at very high volume. It’s developed like no other KICKER subwoofer.
Features:
- Field-Replaceable Recone Kit – cone/voice coil/spider assembly, and forget the glue
- KICKER exclusive Forced Air Cooling™
- Three-inch (12" and 15") and four-inch (18") aluminum voice-coil former
- Extra-large dual-spider suspension
- Double-pressed pulp cone
- Next-gen surround made from proprietary NBR material
- Custom rubber boot for oversized ferrite magnet
- Max-cooling, cast-aluminum basket
- Single 8 AWG push terminal and dual 4 AWG terminal block
- Dual tinsel leads with considerably more strands than L7X

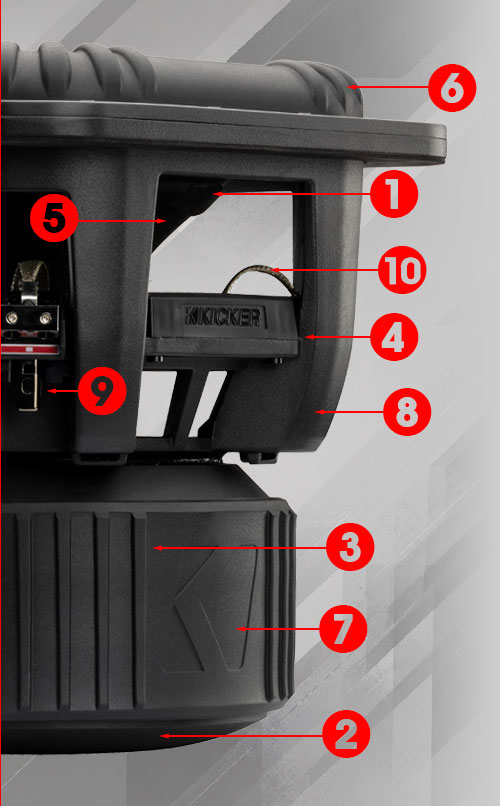

*SoloXS12" shown in diagram.
Specifications
| L7XS.DXF - for subwoofer hole cutouts |
| 3D Printing Software |
| L7XS.SLDPRT - 3D-printing of grille spacers |
| Size (in, cm) |
| 12, 30 |
| Rated Impedance (Ohms) |
| 1 DVC |
| Rec Amp Power RMS |
| 1500-3000 |
| Frequency Response |
| 20-100 |
| Magnet Diameter (in, cm) |
| 9.85, 25 |
| Total Magnet Weight (oz, kg) |
| 705, 20 |
| Voice Coil Diameter (in, mm) |
| 3, 75 |
| Voice Coil Winding Width (in, mm) |
| 3.4, 86.2 |
| Product Dimension Sheet |
| 52L7XS121 Dimensions |
| Top Plate Thickness (in, mm) |
| 0.8, 20 |
| Xmax (in, mm) |
| 1.71, 43.1 |
| Mounting Cutout (in, cm) |
| 11-1/16, 28.1 |
| Mounting Depth (in, cm) |
| 10-1/8, 25.7 |
| Recommended Vented Box Volume (Cu. Ft., L) |
| 3, 84.9 |
| Port Opening (in x in, cm x cm) |
| 3.5 x 13, 9 x 33 |
| Port Length (in, cm) |
| 36.5, 93 |
| Vented Enclosure Tuning Frequency (Hz) |
| 31 |
| Warranty |
| When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this SOLO XS product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEAR from date of original purchase. - Complete warranty information here. |
*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.
**Port Volume Excluded.
Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
